Predict a number from a CSV with Python

Your first AutoML regression model: concrete strength

Imagine you have a spreadsheet of concrete test results. Each row tells you what went into a mixture, how old the specimen was when it was tested, and its measured strength. You want to use those past measurements to estimate strength for another mixture whose ingredients and age you know.

That is the question we will explore: can we predict concrete strength from the ingredients and age? Predicting a number is called regression. You do not need to choose a model yourself: MLJAR AutoML will train several models and compare them using data reserved within the training set.

We will start by reading the data. Then we will hide some measured strengths from training, make predictions for those rows, and compare the predictions with the measurements. Finally, we will read the reports and reuse the saved model. You will need basic familiarity with running Python; each machine-learning concept is introduced as we use it.

First, look at the data

Our UCI dataset contains 1,030 measurements. Here are the first five rows, showing four of the nine columns:

Cement (kg/m³)	Water (kg/m³)	Age (days)	Measured strength (MPa)
540.0	162.0	28	79.99
540.0	162.0	28	61.89
332.5	228.0	270	40.27
332.5	228.0	365	41.05
198.6	192.0	360	44.30

Read the first row as: a mixture with 540 kg of cement and 162 kg of water per cubic metre was tested at 28 days and had a measured strength of 79.99 MPa. Other ingredients also matter; this short preview omits five ingredient columns. The first two rows have different coarse aggregate amounts, which are not shown here.

What we give the model	What we want it to predict
Seven ingredient amounts, in kg/m³, plus specimen age in days	Concrete compressive strength, in MPa

The values we give the model are its inputs, also called features. The column we want to predict is the target. Here its name in the CSV is Concrete compressive strength. MPa, or megapascals, is the unit used for the strength measurements.

See all nine columns in the first five rows

Cement	Blast Furnace Slag	Fly Ash	Water	Superplasticizer	Coarse Aggregate	Fine Aggregate	Age	Concrete compressive strength
540.0	0.0	0.0	162.0	2.5	1040.0	676.0	28	79.99
540.0	0.0	0.0	162.0	2.5	1055.0	676.0	28	61.89
332.5	142.5	0.0	228.0	0.0	932.0	594.0	270	40.27
332.5	142.5	0.0	228.0	0.0	932.0	594.0	365	41.05
198.6	132.4	0.0	192.0	0.0	978.4	825.5	360	44.30

The first seven columns are ingredient quantities in kg/m³, age is in days, and strength is in MPa. These values are taken directly from the source CSV.

All columns are numeric and this snapshot has no missing values. When predicting, we supply the eight inputs and leave out the measured strength. The notebook shows the full table before training, so you can inspect it yourself.

What you will build

By the end, you will have a saved model, predictions in a CSV, and reports showing which models AutoML trained. This is the error chart from our recorded run:

Actual output from the Python 3.12 beta run described below. Each point is a held-out measurement. The diagonal marks equal predicted and measured strength.

Start in Python

Download Python script Download notebook

Use Python 3.11 or 3.12 and a terminal in an empty working directory. A virtual environment keeps this example's packages separate from your other projects:

python -m venv .venv

Activate it with source .venv/bin/activate on Linux/macOS, or .venv\Scripts\Activate.ps1 in Windows PowerShell. Then install the exact beta:

python -m pip install 'mljar-supervised==1.4.0b1'

Use the explicit version: an unpinned installation may select a different release. This example needs only the base package. No GPU, optional Torch models, app server, account, or downloaded model weights are required.

Choose how you want to run:

• Notebook: download concrete_strength.ipynb. Install Jupyter with python -m pip install jupyterlab ipywidgets, start it with python -m jupyterlab, and open the notebook. Run cells from top to bottom. The notebook includes all its Python code and does not require the script.
• Script: download concrete_strength.py to your working directory and run:

python concrete_strength.py --output AutoML_ConcreteStrength

The script is standalone: download that one Python file, install the package, and run it. Open it in your editor to follow the numbered steps in run():

1. Load the measurements and choose inputs and target.
2. Keep related mixtures together when splitting the data.
3. Train a baseline and compare AutoML models.
4. Evaluate held-out rows and predict example inputs.
5. Reload the saved model in a fresh Python process and compare predictions.
6. Plot the errors and save the evaluation record.
7. Create the HTML report and print its location for your browser.

The download helper above run() checks the dataset snapshot. The command-line options at the bottom let you choose a new output path, cached data, or a training budget; run python concrete_strength.py --help to see them.

The script prints training progress and the final evaluation. It downloads a 41.5 kB CSV on first use and checks its checksum. Package installation is a separate, larger download. The default output directory for the notebook is AutoML_ConcreteStrength_Notebook; substitute that name in the paths below when following the notebook route.

After the script finishes, open AutoML_ConcreteStrength/automl/README.html in your browser. The script also prints its full location. Documentation generation and screenshot tools are not needed to run this example.

The training budget is 120 seconds, with two CPU threads. Training may finish early; imports, reports, prediction, and reload add to total runtime. Recorded script runs took 16–21 seconds on the Linux server listed under Measured results. Laptop and 8 GB validation remain pending.

Starting in MLJAR Studio

If you use Studio, the intended starting point is this same notebook and its visible Python code. A suggested prompt is:

Help me run this concrete-strength notebook. Explain the target and mixture groups, compare the held-out error with the baseline, and show the saved model report. Use standard CPU models.

This Studio route has not yet been validated for the tutorial. The tested route here is Python/Jupyter; a Studio walkthrough remains on the release checklist.

Keep related measurements together

The data includes 427 distinct ingredient combinations. Of these, 181 were measured at multiple ages. A random row split could give a model measurements of the same recipe in both training and testing.

We want to assess mixtures excluded from training. The example groups rows by their seven ingredient quantities, excluding age and strength, and reserves 20% of the groups for final testing:

Purpose	Mixture groups	Rows
Training and model selection	341	838
Held-out test	86	192

The 20% setting applies to groups, so the row counts are not an exact 80/20 split. The fixed seed makes this split repeatable. Its indices are saved in splits.json.

Within the training rows, three grouped folds rotate which rows fit a model and which assess it. AutoML compares these validation scores to select models and ensemble weights. Each mixture stays together in every fold. The held-out test rows are used only after selection to assess the result.

Exact ingredient matches are proxy groups, not verified experiment IDs. They do not catch every nearly identical recipe, shared experiment, or laboratory. The dataset has no batch or site identifiers to check those relationships. Duplicate observations are retained within their groups. This split reduces recipe overlap; it does not establish independence by laboratory or experiment.

Train and compare

The example runs AutoML in Explain mode with an explicit list: Baseline, Linear, Decision Tree, and LightGBM. It also evaluates an ensemble that combines model predictions. validation_strategy={"validation_type": "custom"} tells AutoML to use the grouped folds supplied to fit(..., cv=cv).

The metric is mean absolute error (MAE): the average absolute difference between measured and predicted strength. Its unit is MPa, and lower is better. A separately fitted baseline predicts the median training strength for every test row. The median minimizes constant absolute error. It uses no test labels.

Feature discovery is installed by default but currently does not support custom grouped validation, so this example sets feature_discovery=False. Golden features, KMeans features, feature selection, and stacking are also disabled to keep the first workflow focused. See feature discovery and AutoML stages for later experiments.

What you will see while training

The terminal prints a line when each model finishes. In a notebook, the same messages appear below the training cell. Here is an excerpt from our saved run:

>_ Training output

1_Baseline mae 13.660954 trained in 0.51 seconds
2_DecisionTree mae 9.101997 trained in 2.58 seconds
3_Linear mae 8.676548 trained in 0.71 seconds
* Step default_algorithms will try to check up to 1 model
4_Default_LightGBM mae 4.680081 trained in 1.99 seconds
* Step ensemble will try to check up to 1 model
Ensemble mae 4.657805 trained in 0.28 seconds
AutoML fit time: 10.12 seconds
AutoML best model: Ensemble

These are recorded output lines, so you can select or copy them to compare with your run. The footer describes this recorded run. Click report screenshots below to view them at full size.

Read 4_Default_LightGBM mae 4.680081 trained in 1.99 seconds as: this model finished with a validation MAE of about 4.68 MPa. The last line names the selected model, Ensemble. That means AutoML chose a combination of model predictions.

For your run, compare the algorithm names, completed stages, and selected model. The grouped validation prints three splits before these model lines. Timings will vary with your machine, and scores can change with package versions or settings. Different timings alone do not mean your run failed. The final JSON output contains automl_mae_mpa, the separate held-out test score; it is not the validation score printed on each training line.

Measured results

The script was run against published mljar-supervised==1.4.0b1 on 26 October 2026, outside the source checkout's import path. Both Python versions used the same data checksum, seed 42, grouped split, CPU settings, and budget.

Held-out result	MAE (MPa)
Training-median baseline	12.59
Selected AutoML ensemble	4.30

A 4.30 MPa MAE means an average absolute error of 4.30 MPa on these 192 test rows. It does not mean every prediction is within 4.30 MPa. The chart shows some larger errors, including underprediction at the high end. Decide whether those errors are acceptable for your intended use.

This is a row-weighted score: mixtures with more measurements contribute more. It is a single split, not an estimate of uncertainty across possible datasets. Use training validation to explore changes rather than repeatedly optimizing against this held-out test result.

Python	Time inside fit()	Total script time	Sampled peak combined RSS
3.11.15	10.79 s	21.35 s	1.39 GiB
3.12.3	10.12 s	15.76 s	1.14 GiB

Hardware: Intel Core i9-10980XE, Linux x86_64, approximately 251 GiB host RAM. These are single-run server measurements, not laptop performance promises. Total time includes startup, reports, plotting, prediction, and reload, with the dataset already cached. Installation and download are excluded. RSS was sampled every 0.1 seconds across the script and its reload child; shared memory can be counted more than once and short peaks can be missed.

Both runs reproduced predictions exactly after reload and printed no warnings. Package versions, timing records, checksums, and evaluation values are available in the measurement record. Your metrics.json records the result of your own run, which may differ.

Read the reports

Open the overall report

The notebook's report cell displays a clickable report. From a separate Python session after running the script, generate the same HTML view with:

from supervised import AutoML

model = AutoML(results_path="AutoML_ConcreteStrength/automl")
model.report()

Open AutoML_ConcreteStrength/automl/README.html in your browser. In Jupyter, leave model.report() as the last expression in the cell to display it there. You can also open README.md in your editor's Markdown preview.

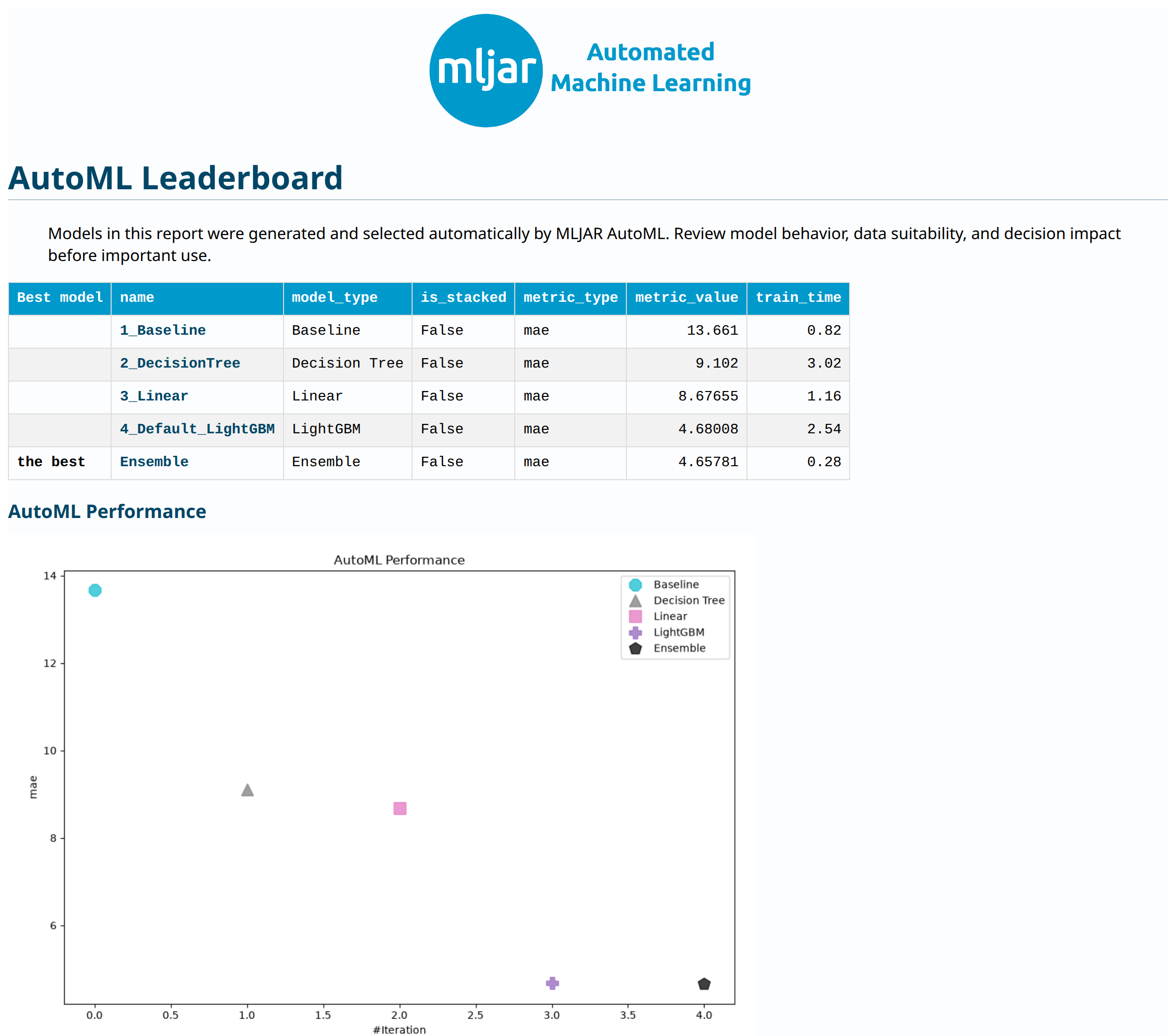

Screenshot of the HTML report generated by beta 1 from the recorded run. Explore this saved report and click a model name to try its navigation without training first.

Start with the row marked the best. The metric_value column is the error used to compare models; lower is better for MAE. Model names are links to their individual reports. The chart below the table shows how the candidates compare. You do not need to understand every setting to find the selected result.

For comparison, the values visible in this screenshot are:

Model	Validation MAE (MPa)
Baseline	13.66
Decision Tree	9.10
Linear	8.68
LightGBM	4.68
Ensemble, selected	4.66

These are validation scores from the training folds. The ensemble's 4.66 MPa validation score and 4.30 MPa test score use different rows. Also, the leaderboard's Baseline follows AutoML's own implementation; our held-out reference is the separately fitted training-median baseline.

Open one model's report

Click 4_Default_LightGBM in the leaderboard. You will see its settings, validation information, and evaluation metrics:

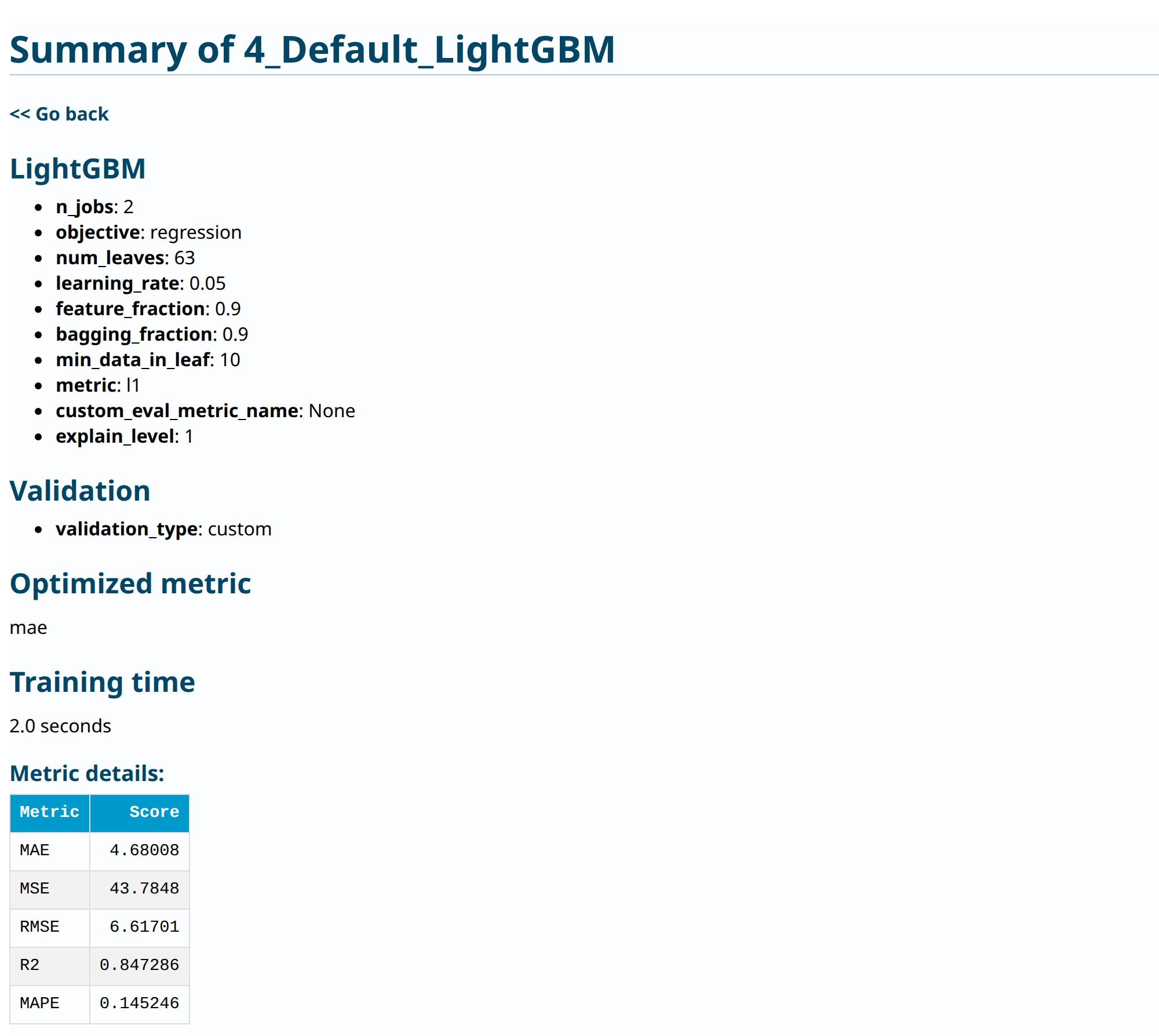

Top of the saved LightGBM report. Start with mae and the MAE row in Metric details. These describe this individual model's validation error. The other metrics give alternative views of the errors; they are not extra predictions.

The parameter list records how the model was trained. You can return to it as you learn more; you do not need to tune those parameters for this tutorial. Use Go back to return to the overall report. Further down, inspect:

• Settings and validation: which configuration was fitted and how it was assessed.
• Metric details and learning curves: the recorded errors and training progress.
• Permutation importance: how shuffling an input affects predictions on validation data.
• True versus predicted and residual plots: where predictions miss measurements.

Importance describes model reliance on inputs; it does not prove causal effects. Available explanations depend on the algorithm and explain_level. The script uses level 1. Keep the entire model directory, including shared preprocessing and ensemble dependencies, for future predictions.

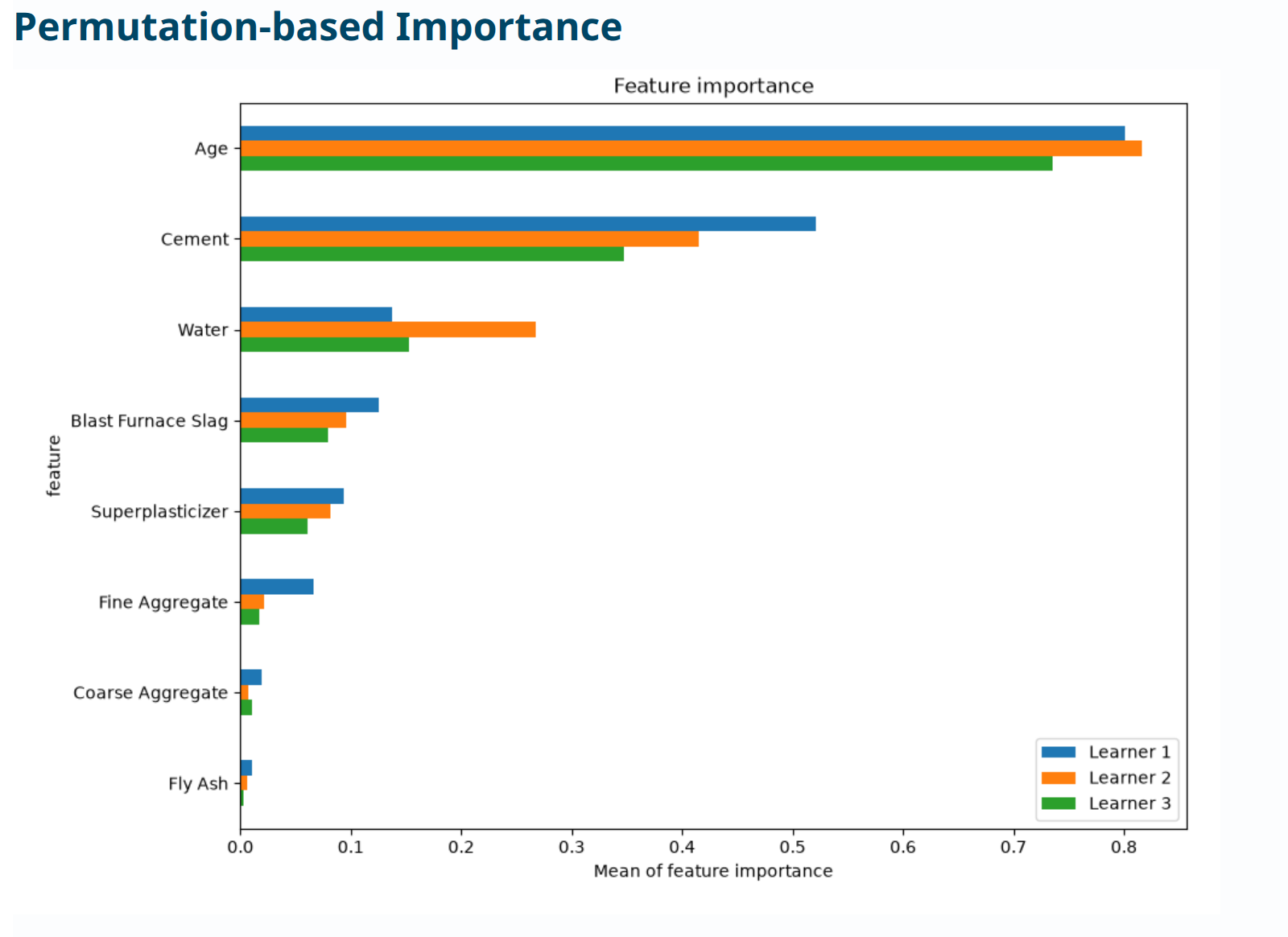

Another part of the same model report. Here age has the largest permutation importance, followed by cement. Each learner was fitted on a different training fold. This tells us which inputs this fitted model relied on; it is not a recipe for changing concrete strength. Media sources and capture details.

Predict rows and reload

The script writes new_rows.csv with three held-out inputs and no target column. These demonstrate prediction; they are not proposed mixtures or independently collected new measurements. In a new Python session, load the saved run:

import pandas as pd
from supervised import AutoML

model = AutoML(results_path="AutoML_ConcreteStrength/automl")
new_rows = pd.read_csv("AutoML_ConcreteStrength/new_rows.csv")
predictions_mpa = model.predict(new_rows)
print(predictions_mpa)

For your own prediction CSV, provide the same eight input columns and units. The complete script also loads the model in a separate interpreter and checks that all held-out predictions agree within rtol=1e-7, atol=1e-7. The recorded runs had zero difference. A failed comparison stops the example.

Adapt it to your own CSV

1. Replace load_data(data_path) with pd.read_csv("your_data.csv"). The UCI checksum and schema checks are specific to this dataset.
2. Choose TARGET and FEATURES. Include only inputs available at prediction time. This example assumes a numeric regression target.
3. Replace the mixture grouping rule with an appropriate split for your data. Repeated customers, subjects, or batches need their own grouping; future predictions may need time-ordered validation. Do not blindly reuse INGREDIENTS.
4. Choose a training budget, constant baseline, and metric meaningful in your units. Reserve test data before training and model selection.
5. Set a new output path. Read the reports, inspect large errors, and verify prediction and reload before applying the model to new inputs.

If the output directory already exists, choose a new --output name to retrain, or load the existing model. If the checksum fails, review the downloaded data against the source rather than removing the check. If the download fails, retry with a working connection; --data path/to/concrete.csv also accepts the same verified snapshot cached elsewhere.

These observational predictions do not establish the causal effect of changing a mixture and do not replace physical testing or engineering assessment.

Next, explore saving and loading models, custom metrics, or exporting a regression prediction app.

Data attribution

Yeh, I. (1998). Concrete Compressive Strength [Dataset]. UCI Machine Learning Repository. DOI: 10.24432/C5PK67. Licensed under CC BY 4.0. The source CSV was retrieved on 26 October 2026 without changes; the example adds split assignments and predictions. Its SHA-256 is 8d4b15b6fc68cd932d745cbd663d5ceae66dd54422e99c1e4865f2936ab7e2af.
